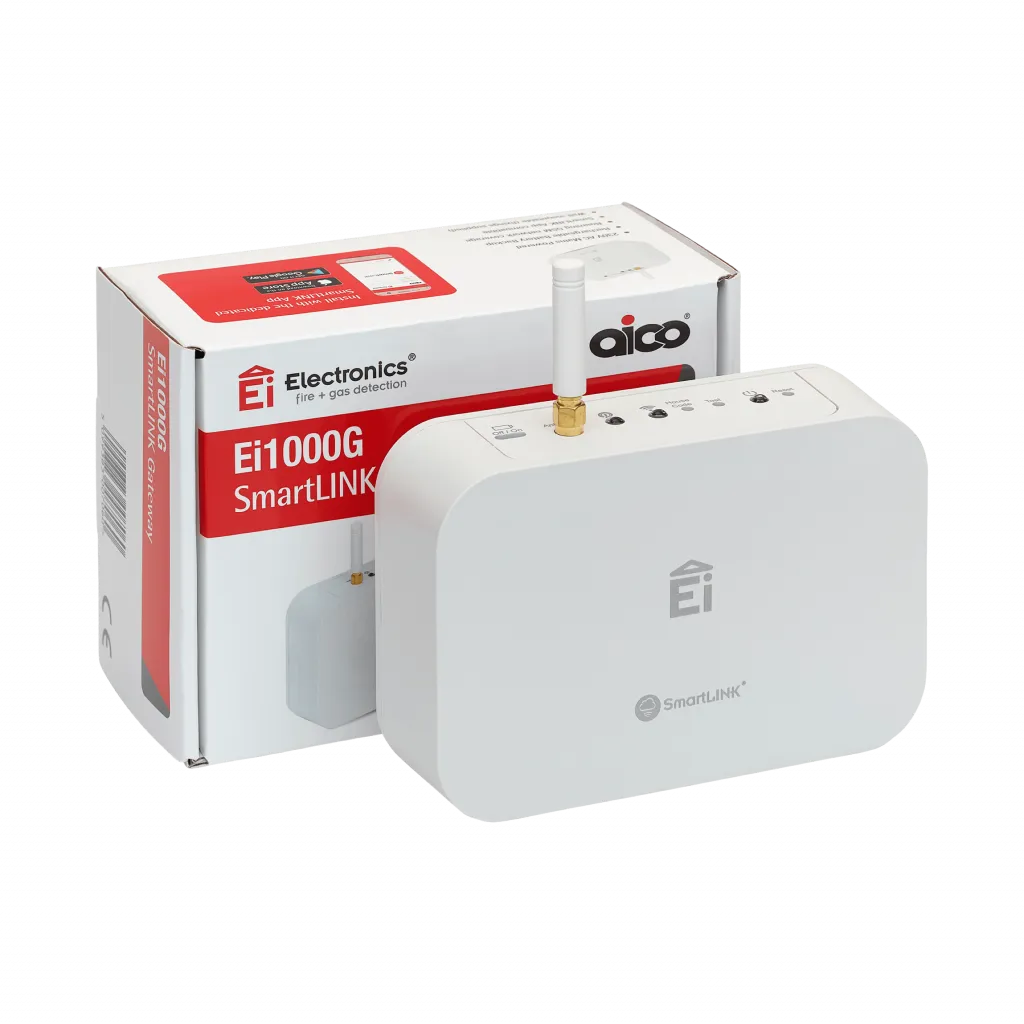

Aico Mains SmartLINK Gateway with Lithium Backup
The Ei1000G SmartLINK Gateway is designed for use with the Aico Radio Frequency devices and tracks when events are triggered within an alarm system.
Features
- Enables remote management of RF Alarms
- Receives RF specific data from RF devices
- Transmits data over GSM network
- Not GSM provider dependent
- Bidirectional data encryption
- Unique House Coding feature
- Easy setup and configuration
- Compatible with SmartLINK & RadioLINK
- 10-year life
Specifications
- Product Life: 10 years
- Supply Voltage: 230V AC, 50Hz.
- Battery back-up: Rechargeable battery
- Power consumption: 40mA
- RF frequency: 868MHz band (1% duty cycle)
- RF Range: > 100 Metres in free air
- RF Protocol type: Mesh architecture
- RF Protocol: SmartLINK
- RF System size: Up to 12 RF devices
- Data upload: via 2G GSM network (Roaming SIM card supplied)
- Modem: Quad-Band GPRS modem
- Data storage: Cloud based
- Indicators: Green LED – Power
- Blue LED – RF communication
- Yellow LED – GSM communication
- Normal Operating and Storage Temperature Range: -10°C to 40°C
- Normal Operating and Storage Humidity Range: 15 % to 95 % Relative Humidity (non condensing)
- Warranty: 5 years
